Elevate Your Work with Precision and Power

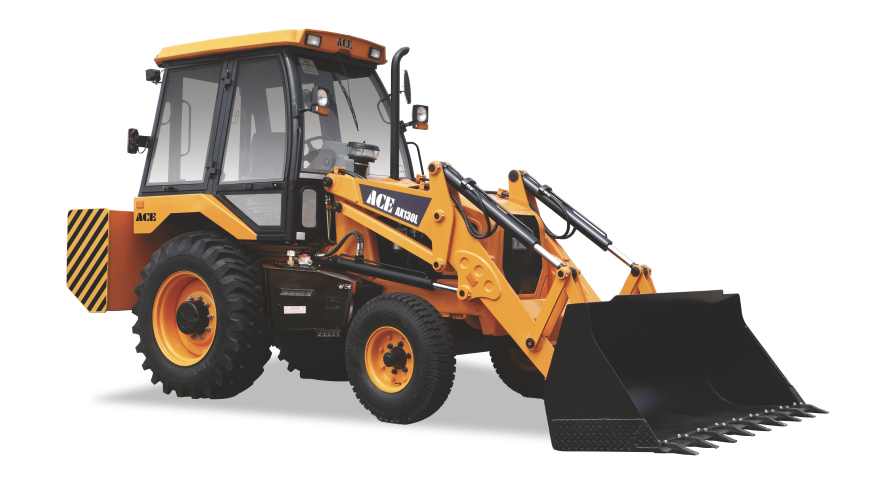

Welcome to ACE AX130L – The Perfect Tool for Every Task
Introducing the ACE AX130L, a cutting-edge tool engineered to provide unmatched performance and versatility. Designed for professionals and DIY enthusiasts alike, the ACE AX130L combines advanced technology with user-friendly features, making it an essential addition to any toolkit. Whether you’re tackling heavy-duty jobs or intricate projects, the ACE AX130L is built to exceed your expectations.
| Engine | Kirloskar 4R1190NA1 (BS-IV), 4-cylinder, inline water-cooled, Naturally Aspirated diesel engine delivering 74 HP @ 2200 rpm |
| Max Torque | 300 Nm @ 1400-1600 RPM |
| Transmission | Synchro shuttle transmission with torque converter & synchronised gearbox. Single switch forward-reverse function with 4 forward & 4 reverse speeds |
| Axle | Front: Drive (4WD) & Steer Axle, centrally pivoted; Rear: Rigid axle with CARRARO planetary drive |
| Steering | Hydrostatic |
| Brakes | Hydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin. Mechanically actuated disc brakes for parking |
| Cabin | ROPS fully enclosed wide view cabin with easy entry and exit |
| Payload | 1900 kgs |
| Re-fill Capacities | Hydraulic Tank: 80 ltrs, Fuel Tank: 150 ltrs, Engine Oil: 11 ltrs, Transmission & Torque Converter: 17 ltrs, Rear Axle: 14.5 ltrs, Differential Housing: 3 ltrs |
| Tyres | Details |
| Front (2WD/4WD) | 9.00 16 16 PR (2WD) / 12.5/80-12 PR (4WD) |
| Rear - Standard | 16.90 28 12 PR |
| Rear - Heavy Duty | 14.00-25-20 PR |
| Hydraulic System | Gear/Intra vane type pump with Four spools control valve |
| Main Pump Flow | 102 lpm |
| Relief Pressure | 210 bar |
| Electrical System | 12V Battery with negative earth and suitable alternator |
| Bucket Capacity | 1.1 cu.m |
| Operating Weight | 8050 kgs |
| Loader Performance | Details |
| Dump Height at 40° | 2.76 M |
| Loadover Height | 3.34 M |
| Bucket Pin Height | 3.63 M |
| Reach at Ground | 1.77 M |
| Reach at Full Height Bucket Dumped (40°) | 0.89 M |
| Below Ground Level Dig Depth | 0.08 M |
| Max Reach at Full Height | 1.22 M |
| Rollback at Ground | 44° |
| Dump Angle | 45° |
| Loader Breakout Force | 4950 kgf |
| Arm Payload | 1900 kg |
| Loader Bucket Capacity (STD) | 1.1 cu.m |
| Optional Equipment | Details |
| Fork Lift Attachment | Yes |
| 6-in-1 Loader Bucket | Yes |
| Heavy Duty Tyres | 14.00 x 25 |
| Cabin with FOPS | Yes |
| Rear Cooling Package | Yes |
| AC Cabin | Yes |
| Telematics | Yes |
| Fire Extinguisher | Yes |
| Variant Model | AX 130L |
