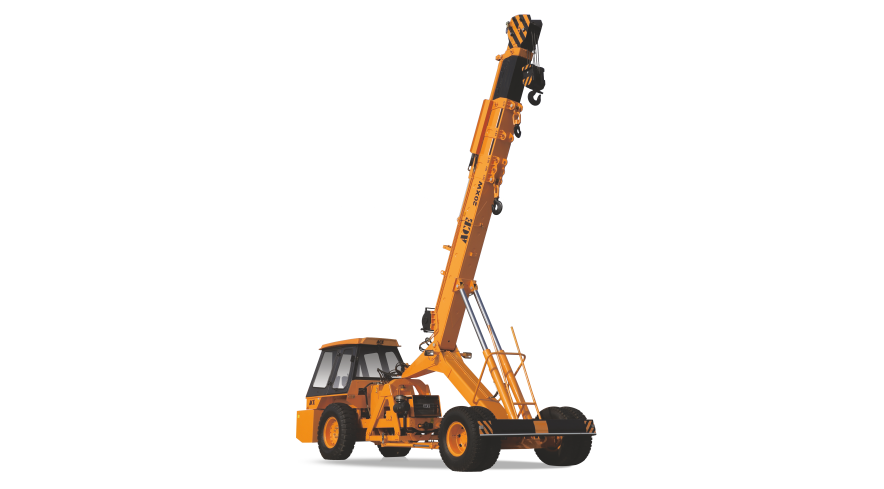

Welcome to ACE 20XW – Elevating Power, Precision, and Durability
Introducing the ACE 20XW, the latest in high-performance tools, engineered for those who refuse to compromise on power or precision. Built for the toughest jobs and the most delicate tasks alike, the ACE 20XW combines cutting-edge technology with industrial-grade durability to meet the demands of professionals in construction, engineering, and beyond.
| LIFTING CAPACITY | 20 Tonnes |
| ENGINE | Simpson (CEV BSIV), 4-cylinder water-cooled diesel engine Model SIV436-F23 |
| Rated Power | 74 HP (54 KW) at 2200 RPM |
| TRANSMISSION | Heavy-duty, sliding mesh with 6 forward and 2 reverse speeds with high low range selector |
| Clutch | Heavy-duty, single, dry friction cerametallic clutch plate with diaphragm type pressure plate |
| Top Speed | 28 KMPH Without load |
| BRAKES | Air operated S Cam dual brakes on front wheels, air-operated disc brakes on rear wheels. Rear brakes actuated through a single pedal. Parking brake pneumatic fail-safe |
| STEERING | Lever operated with 55° articulation on either side and turning radius of 6.5 meters on outer rear wheels |
| TELESCOPIC BOOM | Three part boom with hydraulically operated extensions |
| Telescoping Time | 18 Sec |
| BOOM LUFFING | -3° to +66° |
| Range Time | 20 Sec |
| HYDRAULIC SYSTEM | Gear / Intra Vane type Main Pump. Four spools control valve with built-in relief valve. Suction line has 100 mesh size strainer and return line fitted with 25-micron full-flow filter |
| Hoist Speed | 50 Mtrs./Min. (Line speed) |
| Self-Adjusting Hook Block | Winch driven by hydraulic motor with hook block employing 6 falls of 13mm dia. Rope |
| ROPS CABIN | Wide view ROPS cabin for better visibility |
| GROUND CLEARANCE | N/A |
| Specifications | Details |
| STANDARD EQUIPMENT | ROPS fully enclosed wide view cabin, front tyre protector, work lights |
| OPTIONAL EQUIPMENT | Fly jib: 2.75 Mtrs., 1.25 Tonnes Capacity, Steering Wheel, Spark arrestor, Fire extinguisher |
| FLUID CAPACITIES | Engine: 9.5L, Fuel Tank: 76L, Hydraulic Tank: 125L, Transmission: 48L |
| Electrical System | 12V, Negative earth, 35 Amp alternator, 100 Amp hr battery |
| Tyres | Front: 12.00 x 20-18 PR (4 Nos.), Rear: 14.00 x 25-20 PR (2 Nos.) |
| Safety | Audio overload indication, Hose failure protection, Over hoisting indication, Safety brakes on hoist, Cylinder guards |
| Operating Weight | 15970 Kgs |
| Specifications | Details |
| BOOM LUFFING ANGLE | -3° to +66° |
| Height (Meters) | 20 Meters (Max with 3-part boom) |
| Reach (Meters) | 8.3 Mtrs (Max Reach) |
| SWL-Tonnes | N/A |
| Max Capacity with Manual Extension | N/A |
