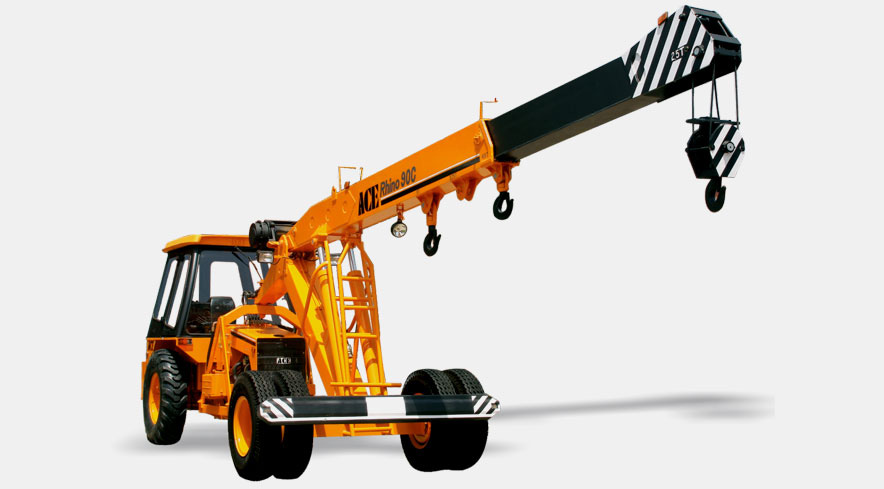

Welcome to Ace Rhino 90c – Your Ultimate Solution for Power and Efficiency
At Ace Rhino 90c, we believe in delivering cutting-edge solutions that combine strength, durability, and high performance. Whether you're a professional, an enthusiast, or someone looking for reliability, Ace Rhino 90c is designed to exceed expectations.
| Lifting Capacity | 9 Tonnes - SWL |
| Engine | Mahindra 4485 IAE (BS III CEV) |
| Rated Power | 47.5 HP (34.9 KW) at 2200 RPM |
| Transmission | Sliding mesh with 6 forward and 2 reverse speeds and high low range selector |
| Clutch | Single, dry friction, clutch plate |
| Top Speed | 29 KMPH without load |
| Hydraulic System | Gear/Intra vane type main pump |
| Brakes | Pneumatically assisted hydraulic brakes. |
| Steering | Hydraulically operated with 55° articulation on either side and turning radius of 5.5 Mtrs. (approx) on outer rear wheels |
| Electrical System | 12V. Negative earth with 35 Amp. alternator and 75 Amp hr. battery |
| Telescopic Boom | Two part slotted boom with hydraulically operated extension of 1800 mm stroke |
| Telescoping Time | 10 Seconds |
| Boom Luffing | -5° to + 60° |
| Luffing Time | 20 Seconds |
| Hoist | Winch is driven by hydraulic motor employing 4 falls of 13 mm dia rope |
| Hoist Speed | 50 Mtrs./Min. (Line speed) |
| Tyres | Front: 10.00 x 20 - 16PR (4 Nos.) |
| Fluid Capacities | Air Cleaner: 0.75 Ltrs. |
| Standard Equipment | ROPS fully enclosed wide view cabin |
| Safety | Audio overload indication |
| Optional Equipment | Fly jib (1.25 tonnes max capacity) |
| Variant Models | Rhino 90 (2300mm extension stroke) |
| Operating Weight | 7750 kgs. |
